Introduction

Although Android Studio can generate an Activity that uses a DrawerLayout, it also adds a lot of boilerplate Java and XML files that do not make it easy to understand. This is a simple DrawerLayout example that uses 1 XML layout file and 1 Java Activity file. This example changes the text in a TextView whenever a drawer item is tapped.

Layout Source Listing

activity_main.xml

<?xml version="1.0" encoding="utf-8"?>
<android.support.v4.widget.DrawerLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    xmlns:tools="http://schemas.android.com/tools"
    android:id="@+id/drawer_layout"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:fitsSystemWindows="true"
    tools:openDrawer="start">

    <RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
        xmlns:tools="http://schemas.android.com/tools"
        android:layout_width="match_parent"
        android:layout_height="match_parent"
        android:paddingBottom="@dimen/activity_vertical_margin"
        android:paddingLeft="@dimen/activity_horizontal_margin"
        android:paddingRight="@dimen/activity_horizontal_margin"
        android:paddingTop="@dimen/activity_vertical_margin">

        <TextView android:id="@+id/messageTextView"
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:text="Simple DrawerLayout example." />
    </RelativeLayout>

    <!-- The navigation drawer -->
    <ListView android:id="@+id/left_drawer"
        android:layout_width="240dp"
        android:layout_height="match_parent"
        android:layout_gravity="start"
        android:entries="@array/menuitems"
        android:choiceMode="singleChoice"
        android:divider="@android:color/transparent"
        android:dividerHeight="0dp"
        android:background="#CCCCCC"/>

</android.support.v4.widget.DrawerLayout>

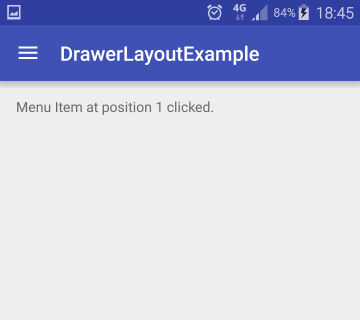

The drawer is a ListView that slides in when the user taps the top-left hamburger button or swipes from the left. It is populated from the a string array.

strings.xml

<resources>
    <string name="app_name">DrawerLayoutExample</string>
    <string-array name="menuitems">
        <item>Menu Item 0</item>
        <item>Menu Item 1</item>
        <item>Menu Item 2</item>
    </string-array>
</resources>

Activity

Our MainActivity is responsible for setting up the DrawerLayout and ListView behaviour.

package org.windrealm.drawerlayoutexample;

import android.content.res.Configuration;
import android.os.Bundle;
import android.support.v4.view.GravityCompat;
import android.support.v4.widget.DrawerLayout;
import android.support.v7.app.ActionBarDrawerToggle;
import android.support.v7.app.AppCompatActivity;
import android.view.MenuItem;
import android.view.View;
import android.widget.AdapterView;
import android.widget.ListView;
import android.widget.TextView;

public class MainActivity extends AppCompatActivity {

    ActionBarDrawerToggle mDrawerToggle;
    DrawerLayout mDrawer;
    TextView messageTextView;
    ListView mDrawerListView;

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main);

        // Get references to the TextView and DrawerLayout
        messageTextView = (TextView) findViewById(R.id.messageTextView);
        mDrawer = (DrawerLayout) findViewById(R.id.drawer_layout);

        // These lines are needed to display the top-left hamburger button
        getSupportActionBar().setHomeButtonEnabled(true);
        getSupportActionBar().setDisplayHomeAsUpEnabled(true);

        // Make the hamburger button work
        mDrawerToggle = new ActionBarDrawerToggle(this,mDrawer,R.string.app_name,R.string.app_name){
            @Override
            public void onDrawerClosed(View drawerView) {
            }

            @Override
            public void onDrawerOpened(View drawerView) {
            }
        };
        mDrawer.setDrawerListener(mDrawerToggle);
        mDrawerToggle.syncState();

        // Change the TextView message when ListView item is clicked
        mDrawerListView = (ListView) findViewById(R.id.left_drawer);
        mDrawerListView.setOnItemClickListener(new ListView.OnItemClickListener() {
           @Override
           public void onItemClick(AdapterView<?> parent, View view, int position, long id) {
               messageTextView.setText("Menu Item at position " + position + " clicked.");;
               mDrawer.closeDrawer(GravityCompat.START);
           }
        });
    }

    @Override
    public boolean onOptionsItemSelected(MenuItem item) {
        // Pass the event to ActionBarDrawerToggle, if it returns
        // true, then it has handled the app icon touch event
        if (mDrawerToggle.onOptionsItemSelected(item)) {
            return true;
        }
        // Handle your other action bar items...
        return super.onOptionsItemSelected(item);
    }

    @Override
    protected void onPostCreate(Bundle savedInstanceState) {
        super.onPostCreate(savedInstanceState);
        // Sync the toggle state after onRestoreInstanceState has occurred.
        mDrawerToggle.syncState();
    }

    @Override
    public void onConfigurationChanged(Configuration newConfig) {
        super.onConfigurationChanged(newConfig);
        mDrawerToggle.onConfigurationChanged(newConfig);
    }

}

Downloads

The Android Studio project and source files for this example can be downloaded here.
