SDL2 C++ Base Code

Contents

Introduction

Note: This document is for SDL 2.
For the SDL 1.2 version, click here.

SDL2 example that allows user to move an object using arrow keys. This is meant to be used as a convenient single-file starting point for more complex projects.

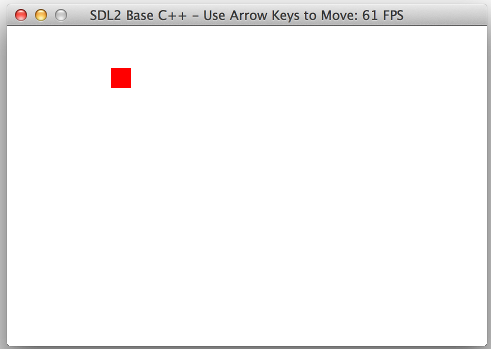

Here is a screenshot of what the program looks like when it runs:

Source Listing

/*
 SDL2 example that allows user to move an object using arrow keys.
 This is meant to be used as a convenient single-file starting point for
 more complex projects.

 Author: Andrew Lim Chong Liang
 windrealm.org
 */
#include <SDL2/SDL.h>
#include <cstdio>
#include <map>

enum {
    DISPLAY_WIDTH  = 480
    , DISPLAY_HEIGHT = 320
    , UPDATE_INTERVAL = 1000/60
    , HERO_SPEED = 2
};

class Sprite {
public:
    int x, y ;
    Sprite() :x(0), y(0) {}
} ;

class Game {
public:
    Game();
    ~Game();
    void start();
    void stop() ;
    void draw();
    void fillRect(SDL_Rect* rc, int r, int g, int b );
    void fpsChanged( int fps );
    void onQuit();
    void onKeyDown( SDL_Event* event );
    void onKeyUp( SDL_Event* event );
    void run();
    void update();
private:
    std::map<int,int> keys; // No SDLK_LAST. SDL2 migration guide suggests std::map
    int frameSkip ;
    int running ;
    SDL_Window* window;
    SDL_Renderer* renderer;
    Sprite hero ;
};

Game::Game()
:frameSkip(0), running(0), window(NULL), renderer(NULL) {
}

Game::~Game() {
    this->stop();
}

void Game::start() {
    int flags = SDL_WINDOW_SHOWN ;
    if (SDL_Init(SDL_INIT_EVERYTHING)) {
        return ;
    }
    if (SDL_CreateWindowAndRenderer(DISPLAY_WIDTH, DISPLAY_HEIGHT, flags, &window, &renderer)) {
        return;
    }
    this->running = 1 ;
    run();
}

void Game::draw() {
    SDL_Rect heroRect ;

    // Clear screen
    SDL_SetRenderDrawColor(renderer, 255, 255, 255, SDL_ALPHA_OPAQUE);
    SDL_RenderClear(renderer);

    // Render hero
    heroRect.x = hero.x ;
    heroRect.y = hero.y ;
    heroRect.w = 20 ;
    heroRect.h = 20 ;
    fillRect(&heroRect, 255, 0, 0 );

    SDL_RenderPresent(renderer);
}

void Game::stop() {
    if (NULL != renderer) {
        SDL_DestroyRenderer(renderer);
        renderer = NULL;
    }
    if (NULL != window) {
        SDL_DestroyWindow(window);
        window = NULL;
    }
    SDL_Quit() ;
}

void Game::fillRect(SDL_Rect* rc, int r, int g, int b ) {
    SDL_SetRenderDrawColor(renderer, r, g, b, SDL_ALPHA_OPAQUE);
    SDL_RenderFillRect(renderer, rc);
}

void Game::fpsChanged( int fps ) {
    char szFps[ 128 ] ;
    sprintf( szFps, "%s: %d FPS", "SDL2 Base C++ - Use Arrow Keys to Move", fps );
    SDL_SetWindowTitle(window, szFps);
}

void Game::onQuit() {
    running = 0 ;
}

void Game::run() {
    int past = SDL_GetTicks();
    int now = past, pastFps = past ;
    int fps = 0, framesSkipped = 0 ;
    SDL_Event event ;
    while ( running ) {
        int timeElapsed = 0 ;
        if (SDL_PollEvent(&event)) {
            switch (event.type) {
                case SDL_QUIT:    onQuit();            break;
                case SDL_KEYDOWN: onKeyDown( &event ); break ;
                case SDL_KEYUP:   onKeyUp( &event );   break ;
                case SDL_MOUSEBUTTONDOWN:
                case SDL_MOUSEBUTTONUP:
                case SDL_MOUSEMOTION:
                    break ;
            }
        }
        // update/draw
        timeElapsed = (now=SDL_GetTicks()) - past ;
        if ( timeElapsed >= UPDATE_INTERVAL  ) {
            past = now ;
            update();
            if ( framesSkipped++ >= frameSkip ) {
                draw();
                ++fps ;
                framesSkipped = 0 ;
            }
        }
        // fps
        if ( now - pastFps >= 1000 ) {
            pastFps = now ;
            fpsChanged( fps );
            fps = 0 ;
        }
        // sleep?
        SDL_Delay( 1 );
    }
}

void Game::update() {
    if ( keys[SDLK_LEFT] ) {
        hero.x -= HERO_SPEED ;
    } else if ( keys[SDLK_RIGHT] ) {
        hero.x += HERO_SPEED ;
    } else if ( keys[SDLK_UP] ) {
        hero.y -= HERO_SPEED ;
    } else if ( keys[SDLK_DOWN] ) {
        hero.y += HERO_SPEED ;
    }
}

void Game::onKeyDown( SDL_Event* evt ) {
    keys[ evt->key.keysym.sym ] = 1 ;
}

void Game::onKeyUp( SDL_Event* evt ) {
    keys[ evt->key.keysym.sym ] = 0 ;
}

int main(int argc, char** argv){
  Game game;
    game.start();
  return 0;
}
